G4 center diff mount

Post by onclebens on Fri 8 Aug - 0:32


price 150$ including 6061 aluminum front and rear mounts + medium steel & black oxyde shaft + trans adapters.
needed front and rear custom shafts (not included).

parts needed :
1/8 center diff with 40T mod.1 max.
personally i use HPI trophy 4.6 diff ref 101186 + hobao 40T spur gear ref 89045
28mm standoff. I use axial ones and adjust lenght : http://www.amain.com/Axial-7x30mm-Post-Grey-2/p30962
medium 18T mod.1  pinion.
1 cylindrical stand off. This fit perfectly and you can adjust lenght according your pinion. http://www.amain.com/Traxxas-Output-Gear-33T-E-Maxx/p22576
2 ball bearings Ø5xØ11x4.

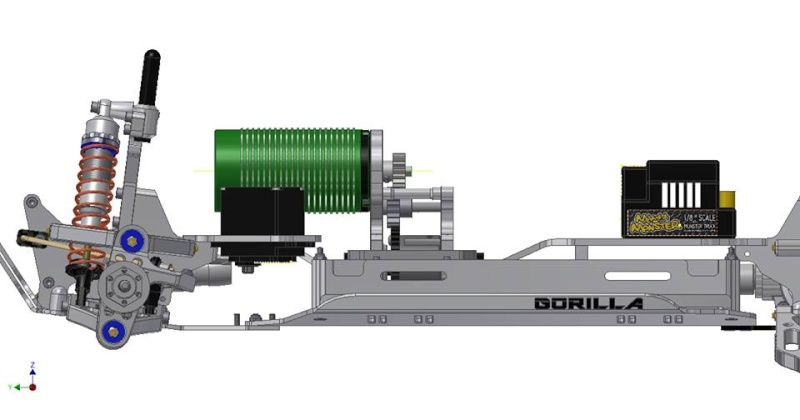

motor on the back :

motor on the front :

https://www.facebook.com/groups/centralemaxxrc/  a.k.a onclebens
email greg[dot]jeanne[at]live[dot]fr
