Post by onclebens on Wed 23 Dec - 20:08

CENTRALEMAXXRC E-Ghöst Chassis


In Stock

Price $595.

Specs :

LCG full 7075t6 billet milled chassis.

Chassis plate thickness 8mm

Central brace thickness 8mm

Wheelbase with CM extension 408mm / without CM extension 376mm
weight of naked chassis 404grams

Full integrated center diff mount
Integrated servo mount
Max battery size : to come

Leopard 4092 and Castle 1515 series motor fits.


Recommended to use with :

- CentralemaxxRC chassis extension
- CentralemaxxRC servo saver (highly recommended to keep the steering turnbuckle under the front dogbone)
- CentralemaxxRC skidplate.
- MMM


parts needed :


-screws M3
-screws FHC M4
-screws M2.5
screw list for the chassis :
CHC: M3x8mm, qty 14

FHC:
M3x8, qty 26
M3x10, qty 4
M3x14, qty 1
M3x25, qty 4
M4x8, qty 2
M4x10, qty 3

velcro straps Wide 20/25mm ref to come
Team associated Rx box Ref ASC7896 $3.79
1/8 central diff up to 48T
Traxxas MMM mounting plate ref TRA5626 $2.89

TeknoRC sideguards ref TKR400010 $12.99

ESC switch mount FullforceRC ref to come

Axial posts Ø7x30mm ref AXIA1423 $5.59

parts included in the kit :
chassis plate
milled central brace
2 integrated diff mount
2 integrated servo mount
integrated motor mount
Front bulk plate
rear bulk plate
3 Esc wire holders
2 velcro clamps
F&R stainless steel dogbones

Pics

E-Ghöst Chassis Asm_eg15


E-Ghöst Chassis Asm_eg10

E-Ghöst Chassis Asm_eg11

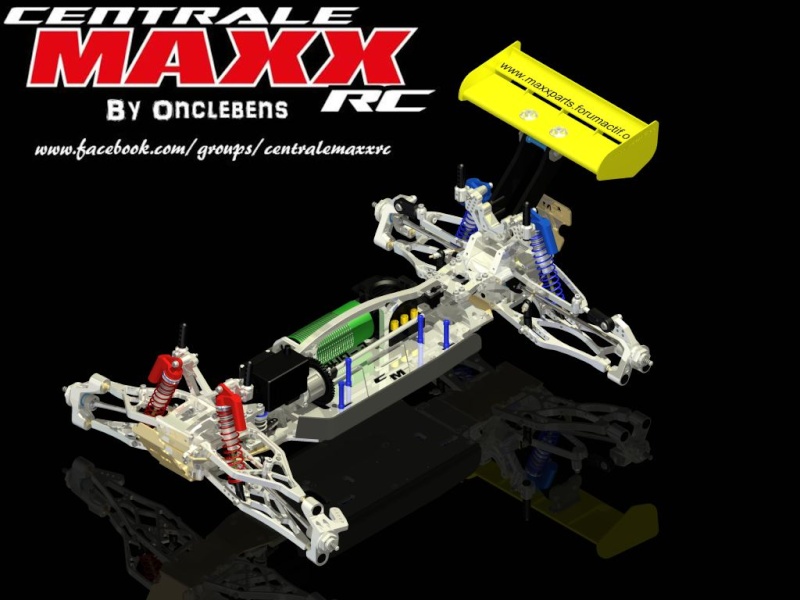

E-Ghöst Chassis Asm_eg12

E-Ghöst Chassis Asm_eg13

E-Ghöst Chassis Asm_eg14

Plastic proto :

E-Ghöst Chassis 22770810

E-Ghöst Chassis 12376410

E-Ghöst Chassis 12373210

E-Ghöst Chassis 94100610

E-Ghöst Chassis 16048810

E-Ghöst Chassis 19288010

E-Ghöst Chassis 15086410

E-Ghöst Chassis 14634210

E-Ghöst Chassis 10334210

E-Ghöst Chassis 19368510

E-Ghöst Chassis 12376210

E-Ghöst Chassis 12391310
