Post by blazerss on Thu 7 Aug - 2:51

These replace the stock plastic pieces with aluminum ones.  This is mainly just to add some "bling" factor but also helps complete the shocks if your wanting to polish the shocks or have them anodized.

I will take you through the process.

Started out by doing a little drawing of the spring separator/retainer.
Proline powerstorke aluminum spring separator 24pbd5u

Then off to the old Enco lathe.
Proline powerstorke aluminum spring separator Kbq3x4

Grabbed some 1" bar stock.
Proline powerstorke aluminum spring separator Jrwehi

Drilled/bored the center and took it down to the largest diameter
Proline powerstorke aluminum spring separator 33zd7jd

Then took it down to the diameter that the upper spring sits in
Proline powerstorke aluminum spring separator S12kas

Then started taking it down to the diameter that the lower spring sits in
Proline powerstorke aluminum spring separator 205qf11

Since the part is so thin it doesn't break off clean when you part it off.
Proline powerstorke aluminum spring separator 2v81lah

To solve this issue without marking up the part with the jaws of the chuck I had to hold it in a small chuck with sand paper wrapped around the part and then put that in the lathe and machine it off. The sand paper trick allows for excellent grip, but doesn't mar up your part.
Proline powerstorke aluminum spring separator 30lcwmw

Then it's done.
Proline powerstorke aluminum spring separator Hx89kz
Proline powerstorke aluminum spring separator 2vkg75k
Proline powerstorke aluminum spring separator Mudcoi
Proline powerstorke aluminum spring separator O5uwld

blazerss

Messages : 19
Date d'inscription : 2014-08-05
Localisation : USA

View user profile

Back to top Go down

Proline powerstorke aluminum spring separator Empty Re: Proline powerstorke aluminum spring separator

Post by blazerss on Thu 7 Aug - 3:32

Once I had them figured out, I had them run on the CNC.

Proline powerstorke aluminum spring separator 15ntb84
Proline powerstorke aluminum spring separator 262tmjt
Proline powerstorke aluminum spring separator 2wn5iyv
Proline powerstorke aluminum spring separator 29e4ug2

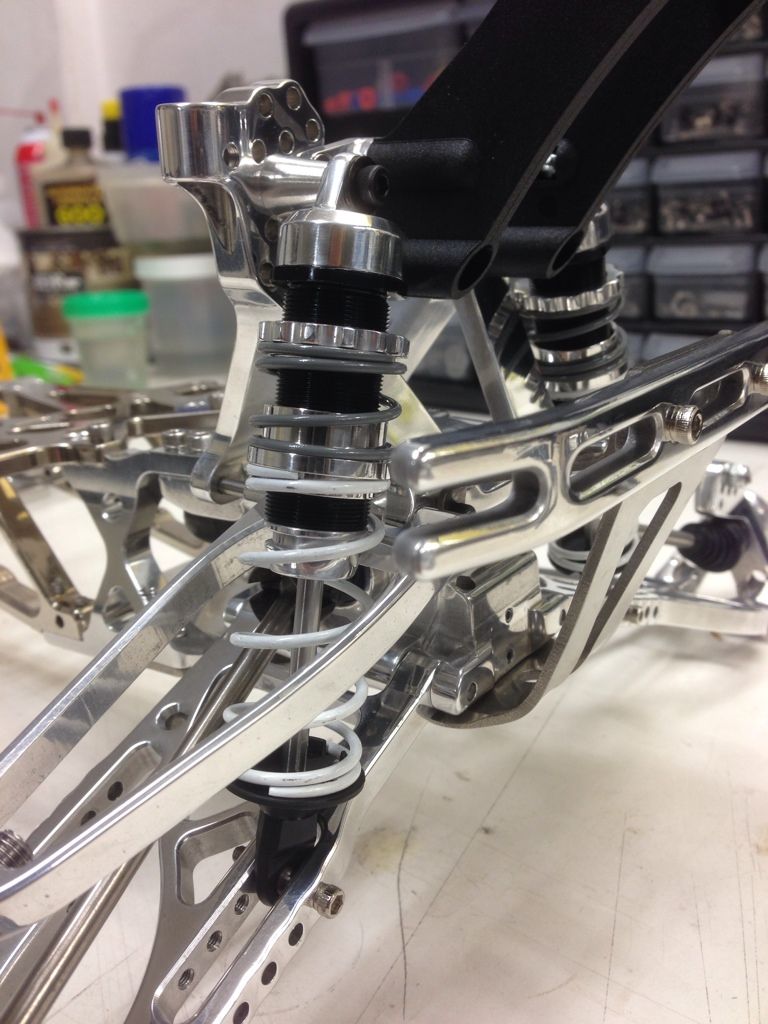

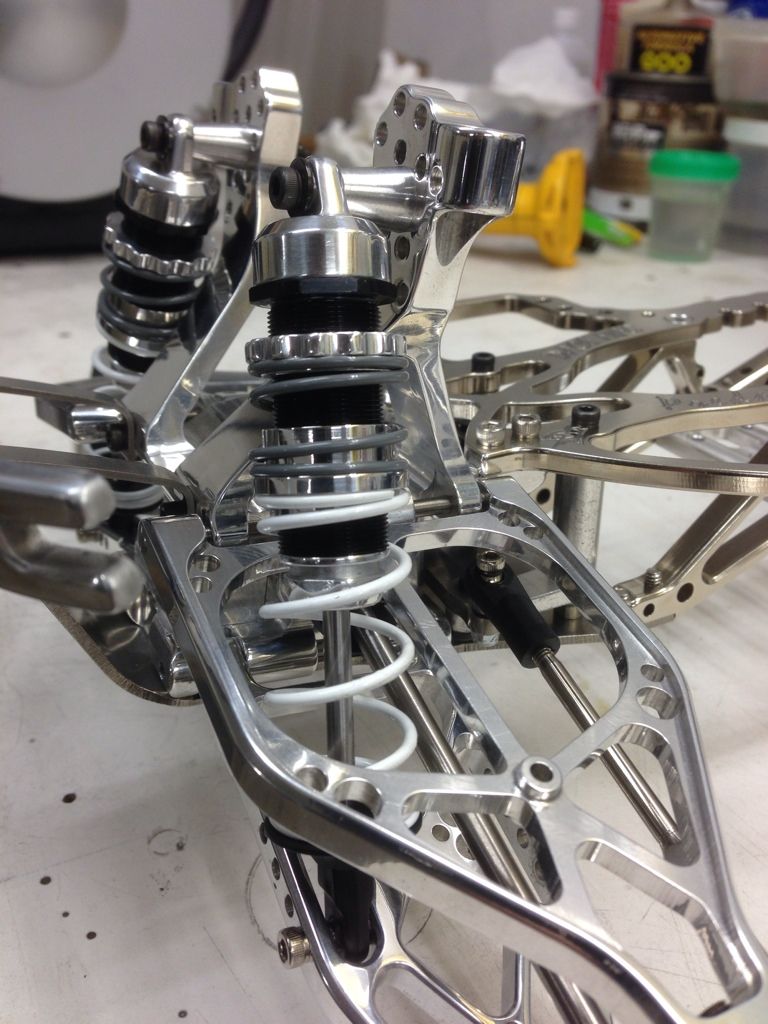

Customer's polishing
Proline powerstorke aluminum spring separator DA9CC289-11B3-4200-9CF9-8DF100B36A4F-634-00000044D1A99E38_zps05fc74c7
Proline powerstorke aluminum spring separator A2943EF0-5E62-4E2E-BCF9-9DD89A714A9A-634-00000044D5E4C356_zps089226f9
Proline powerstorke aluminum spring separator Image1_332543
Proline powerstorke aluminum spring separator Image2_821235
Proline powerstorke aluminum spring separator IMG_3348

blazerss

Messages : 19
Date d'inscription : 2014-08-05
Localisation : USA

View user profile

Back to top Go down

Proline powerstorke aluminum spring separator Empty Re: Proline powerstorke aluminum spring separator

Post by blazerss on Thu 7 Aug - 3:35

Customer's anodizing

Proline powerstorke aluminum spring separator IMG_5100
Proline powerstorke aluminum spring separator IMG_5079
Proline powerstorke aluminum spring separator IMG_5097
Proline powerstorke aluminum spring separator IMG_5315
Proline powerstorke aluminum spring separator IMG_5316
