Post by wheelman on Sun 7 Dec - 8:18

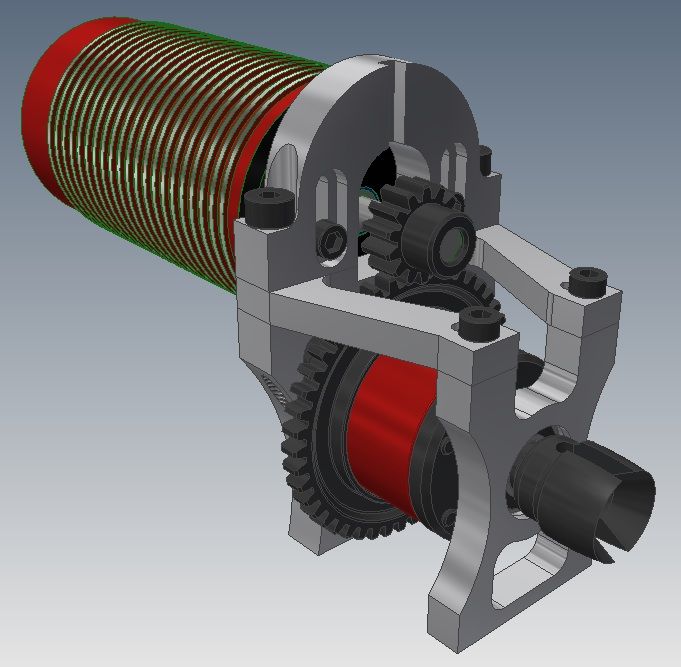

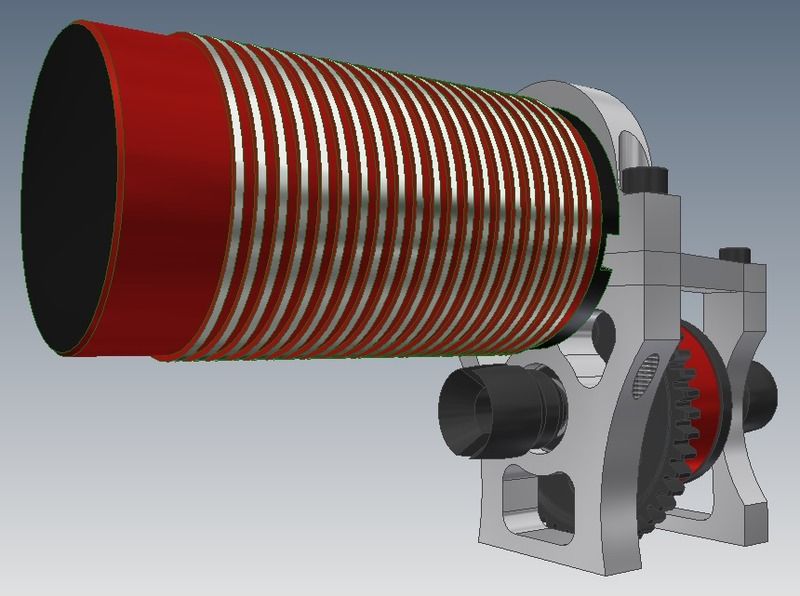

This was a joint effort project between myself and K-Maxx Kustoms. Our universal center diff mount. We designed it not only to be stronger than the competition, but to also accept the large can (and M4 mounting screws) of a Castle 1717 motor. Standard 1/8 brushless motors also fit, of course. Also, we designed it so the motor can be removed from the vehicle without disrupting gear mesh...just remove the two long M4 bolts on each side of the motor mount, and the top half of the mount comes off, still attached to the motor.

Contact Kris at K-Maxx Kustoms for pricing and availability.

Universal Center Diff Mount (1717 compatible) IMG_2594_zpspyjqt0re

Universal Center Diff Mount (1717 compatible) IMG_2595_zpsloykmhnj

Universal Center Diff Mount (1717 compatible) IMG_2597_zpsgfqkkntz

Universal Center Diff Mount (1717 compatible) IMG_2596_zpsuymgnes4

Universal Center Diff Mount (1717 compatible) IMG_2598_zpso8cyihtg

Universal Center Diff Mount (1717 compatible) IMG_2599_zps83fbtuxm

Universal Center Diff Mount (1717 compatible) IMG_2601_zpsptlyrmhz

Universal Center Diff Mount (1717 compatible) IMG_2604_zpsjb6gbzim

Universal Center Diff Mount (1717 compatible) IMG_2600_zpsor1smgtc

Side by side comparison between our mount and RC-Monster's universal mount.
Universal Center Diff Mount (1717 compatible) IMG_2602_zpslew06rht

Universal Center Diff Mount (1717 compatible) IMG_2603_zpsxg09cbdy
